MAHLE 224-3666WR-0.50MM PISTON KIT W/RINGS (.50MM) FOR 2008-2010 FORD SUPERDUTY WITH 6.4L POWERSTROKE ENGINE

(No reviews yet) Write a Review
SKU:
MCI2243666WR050MM
MPN:
2243666WR050MM
Shipping:
Calculated at Checkout
  • MAHLE 224-3666WR-0.50MM PISTON KIT W/RINGS (.50MM) FOR 2008-2010 FORD SUPERDUTY WITH 6.4L POWERSTROKE ENGINE
  • MAHLE 224-3666WR-0.50MM PISTON KIT W/RINGS (.50MM) FOR 2008-2010 FORD SUPERDUTY WITH 6.4L POWERSTROKE ENGINE
$1,858.32
724-785-4022

Description

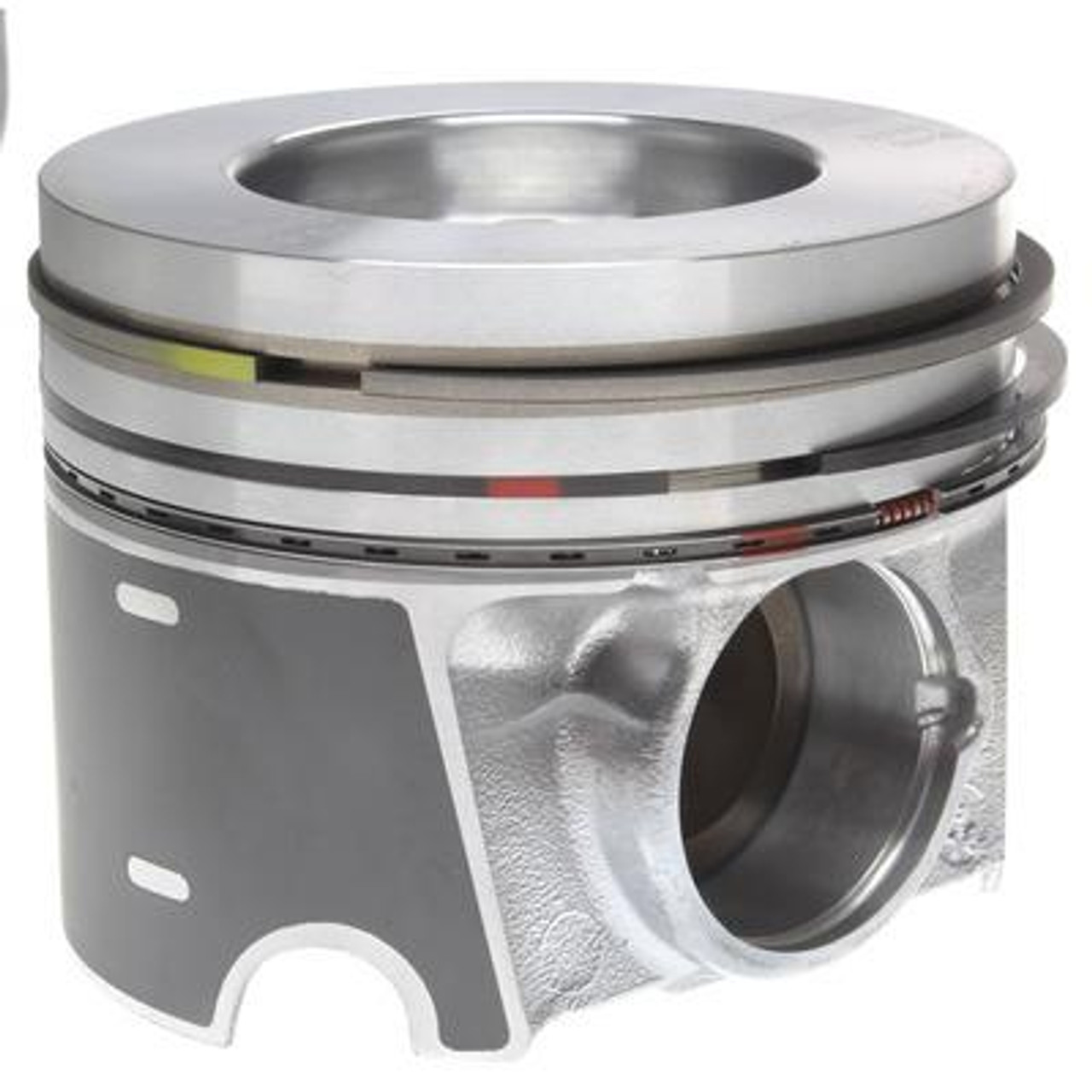

The MAHLE 224-3666WR-0.50MM is a high-quality piston and ring set designed for the 2008–2010 Ford 6.4L Powerstroke diesel engines. This kit is ideal for engine rebuilds requiring a 0.50mm overbore, ensuring optimal performance and durability.

? Specifications

  • Bore Size: 3.885 inches (98.476 mm)

  • Compression Height: 0.151 inches (3.83 mm)

  • Piston Skirt Coating: Coated for reduced friction and enhanced durability

  • Ring Type Code: RFK13PF

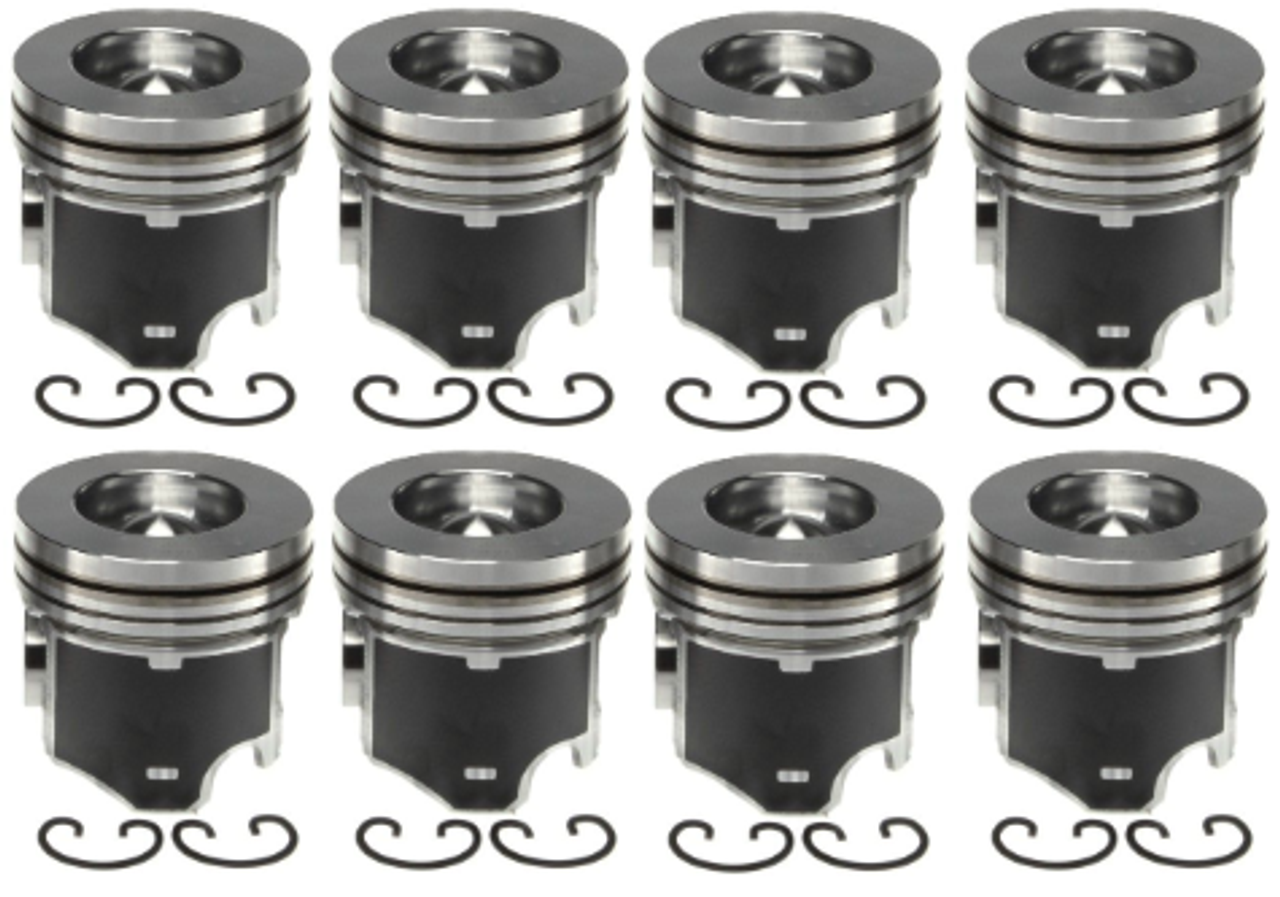

  • Kit Includes: 8 pistons with rings, piston pins, and pin retainers

  • Sold As: Full set only (8 pistons)

? Vehicle Fitment

This piston set is compatible with the following Ford models equipped with the 6.4L Powerstroke diesel engine (VIN Code 'R'):

  • 2008–2010 Ford F-250 Super Duty

  • 2008–2010 Ford F-350 Super Duty

  • 2008–2010 Ford F-450 Super Duty

  • 2008–2010 Ford F-550 Super Duty

These models include various trims such as XL, XLT, Lariat, King Ranch, and Harley-Davidson Edition. It's essential to verify the engine specifications and VIN code to ensure compatibility.



Taxable Yes
Harmonized Tariff Code (Schedule B) 8409914000
SDR Required Flag No
Warranty Time UOM Months
Warranty Time 12
Country of Origin (Primary) China
Life Cycle Status Code Available to Order
Oversized Yes
Top Compression Ring Thickness 2.50 mm
Second Compression Ring Thickness 2.00 mm
Oil Ring Thickness 3.00 mm
Piston Pin Outside Diameter 38.496 mm
Piston Head Type Bowl
Piston Material Aluminium
Piston Pin Hole Location Center
Piston Skirt Clearance (in) 0.0091
Piston Pin Retention Type Fixed
Measure Skirt Clearance At 43MM from Bottom
Piston Skirt Clearance (mm) 0.232
Piston Length (in) 3.11
Coated Skirt Yes
Piston oversize 0.50 mm
Piston Recess Diameter (mm) 57.5
Piston Length (mm) 79
Piston Recess Diameter (in) 2.26
Bore Diameter (mm) 98.708
Piston Recess Depth (mm) 15.9
With Piston Rings Yes
Piston Recess Depth (in) 0.626
Piston Item Grade OE Replacement
Compression Height (mm) 52.29
Type of package Smallest Pack (Consumer Level)
Quantity per packing unit 8
package level GTIN 00027067927408
Height (Inch) 9.25
Width (Inch) 11.375
Length (Inch) 13.75
weight (Pounds Gross) 3.452
