Product Description

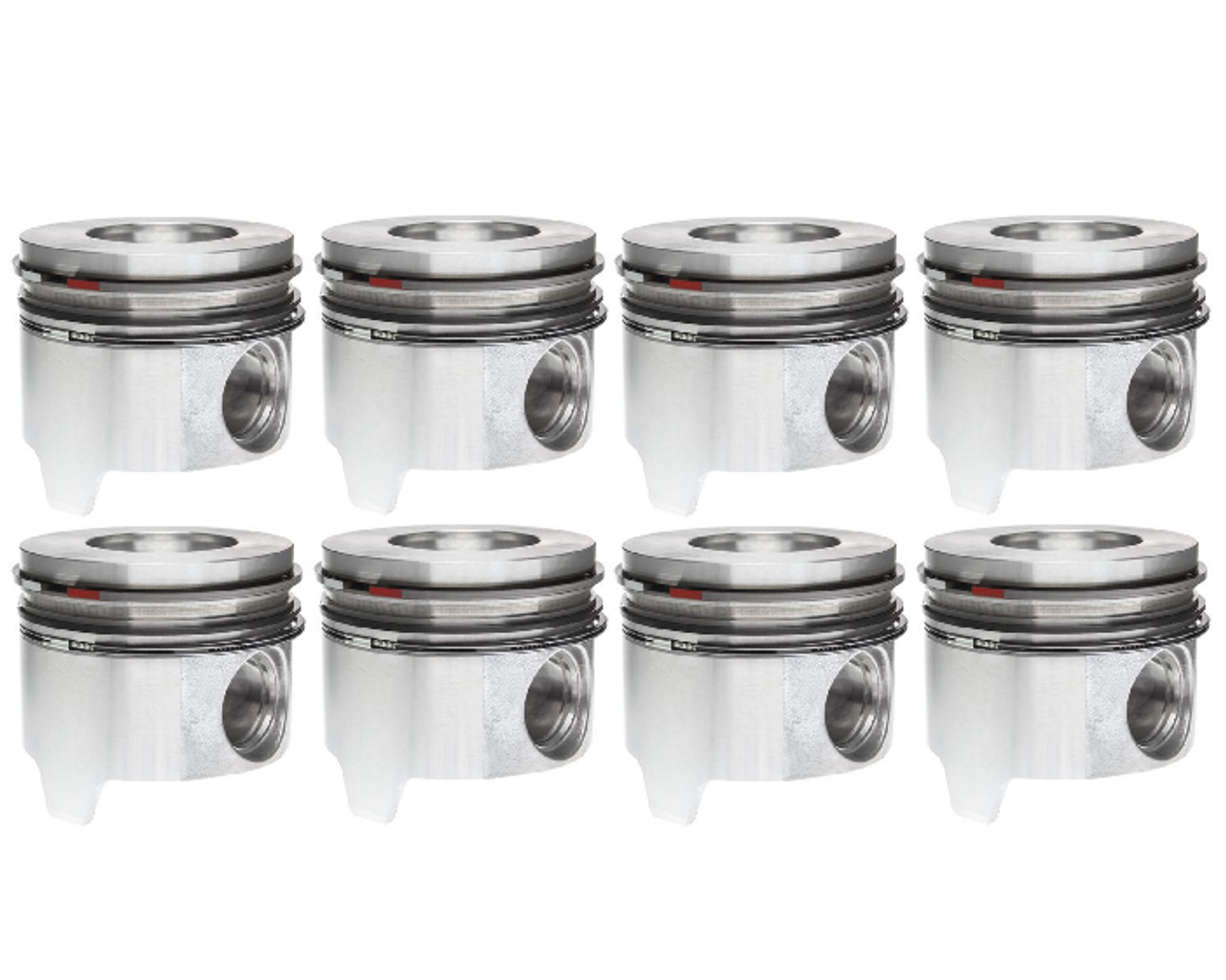

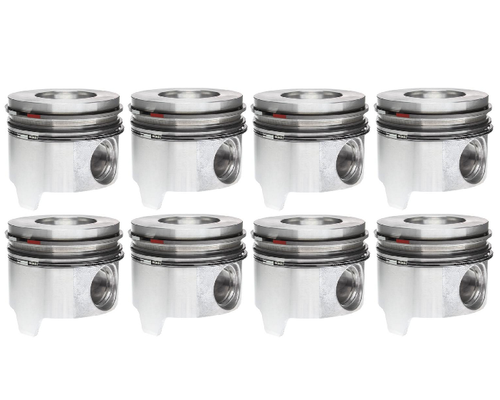

MAHLE 224-3409WR.030 piston set with rings for the 1994–2003 Ford 7.3L Powerstroke—sized .030" over with .010" reduced compression height to help manage cylinder pressure on work, tow, and tuned builds while maintaining OE fit and reliability. Non-coated skirt, OE-style ring pack, sold as a complete set of 8.
Fitment
- Ford 7.3L Powerstroke diesel (F-250 / F-350 / F-450 / F-550) model years 1994–2003
- Also used in many 1994–2003 E-Series vans and 2000–2005 Excursion with 7.3L (engine year applicability)
- Bore size: .030" over (4.140") — requires machine work and proper piston-to-wall clearance
Cross-Reference / Alternatives (MAHLE on CPP Diesel only)
- Same design, STD bore: MAHLE 224-3409WR (STD)
- .010" over reduced-compression: MAHLE 224-3409WR.010
- .040" over reduced-compression: MAHLE 224-3409WR.040
- Standard-compression alternative (.030"): MAHLE 224-3163WR.030
Specifications for Mahle 224-3409WR.030
| Attribute | Value |
|---|---|
| Brand | MAHLE |
| Part Number | 224-3409WR.030 |
| UPC | 027067913395 |
| GTIN | 00027067913395 |
| Engine | Ford 7.3L Powerstroke (1994–2003) |
| Bore Size | .030" over (4.140") |
| Compression Height | .010" reduced vs. stock |
| Ring Pack (typ.) | 3.0 mm / 2.0 mm / 3.5 mm |
| Includes | Eight (8) pistons with rings, wrist pins & retainers |
| Skirt | Non-coated (OE style) |
| Shipping | Free Shipping (ground); options shown at checkout |
| Prop 65 | This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Learn more. |
FAQ
Is the price per piston or for a full set?
CPP Diesel lists this as a complete set of eight (8) pistons with rings.
What does “reduced compression height” mean on this piston?
The compression height is .010" shorter than stock to help control cylinder pressure in towing or tuned applications while keeping OE geometry.
Do I need machine work for .030" over?
Yes—have your block bored/honed to +.030" and set piston-to-wall clearance per MAHLE spec.
Are the skirts coated?
No—this configuration uses non-coated skirts.
