MAHLE

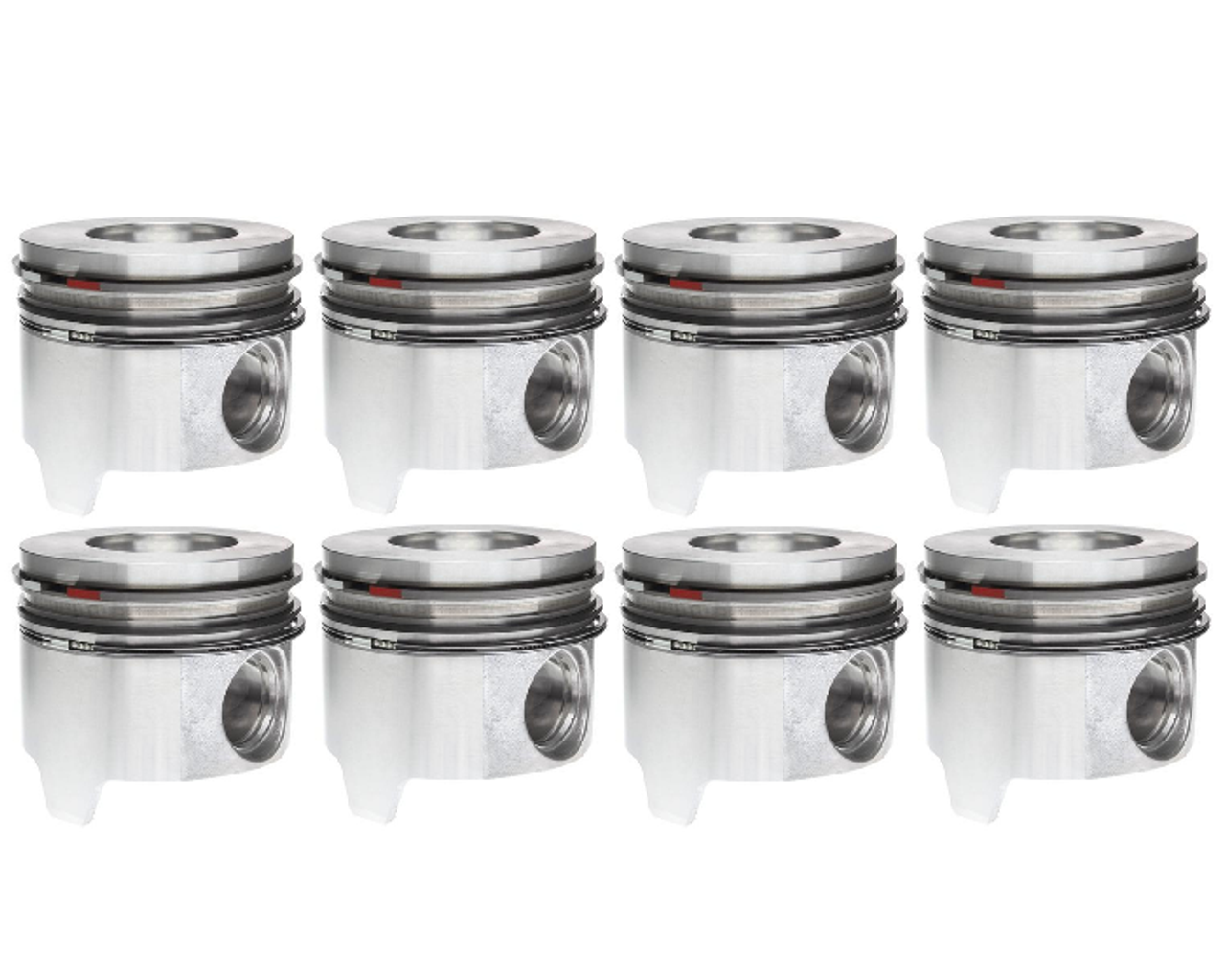

MAHLE 224-3409WR.010 PISTON WITH RINGS (.010 REDUCED COMPRESSION) FOR 1994-2003 FORD SUPERDUTY WITH 7.3L POWERSTROKE ENGINE

(No reviews yet) Write a Review
SKU:
MCI2243409WR010
MPN:
2243409WR010
Shipping:
Calculated at Checkout
  • MAHLE 224-3409WR.010 PISTON WITH RINGS (.010 REDUCED COMPRESSION) FOR 1994-2003 FORD SUPERDUTY WITH 7.3L POWERSTROKE ENGINE
  • MAHLE 224-3409WR.010 PISTON WITH RINGS (.010 REDUCED COMPRESSION) FOR 1994-2003 FORD SUPERDUTY WITH 7.3L POWERSTROKE ENGINE
$1,596.08
724-785-4022

Description

The MAHLE 224-3409WR.010 is a high-quality piston set designed for the 1994–2003 Ford 7.3L Powerstroke diesel engines. This set includes eight pistons, each with rings, and is engineered to meet or exceed OEM specifications.

?️ Specifications

  • Bore Size: 4.120 inches (0.010" oversize)

  • Compression Height: Reduced by 0.010 inches

  • Material: Aluminum

  • Compression Ring Groove: 3.00mm

  • Second Ring Groove: 2.00mm

  • Oil Ring Groove Width: 3.50mm

  • Piston Pin Diameter: 1.3085 inches (33.233 mm)

  • Recess Depth: 0.673 inches

  • Recess Diameter: 2.260 inches

  • Pin Size: 1.308" O.D.

  • Ring Type Code: GCL-40URW

? Vehicle Fitment

This piston set is compatible with the following Ford 7.3L Powerstroke diesel engines:

  • Ford F-250, F-350, F-450, F-550 (1994–2003)

  • Ford Excursion (1999–2003)

  • Ford E-250, E-350, E-450, E-550 vans (1994–2003)

  • Ford F-650, F-750 (1994–2003)

  • International Harvester/Navistar 7.3L engines (1994–2003)



? Key Features

  • OE Quality: Manufactured to stringent specifications, ensuring durability and performance.

  • Non-Coated Skirt: Designed for standard applications; for performance upgrades, consider ceramic-coated options.

  • Reduced Compression Height: Ideal for engines with deck height variations or to achieve specific compression ratios.

  • Complete Set: Includes all necessary components for a full engine rebuild.

Taxable Yes
Harmonized Tariff Code (Schedule B) 8409914000
SDR Required Flag No
Warranty Time UOM Months
Warranty Time 12
Country of Origin (Primary) China
Life Cycle Status Code Available to Order
Oversized Yes
Top Compression Ring Thickness 3.00 mm
Second Compression Ring Thickness 2.00 mm
Oil Ring Thickness 3.40 mm
Piston Pin Outside Diameter 33.233 mm
Piston Head Type Bowl
Piston Material Aluminium
With Piston Rings Yes
Piston oversize 0.010 in
Coated Skirt No
Piston Item Grade OE Replacement
Compression Height (mm) 54.15
Type of package Smallest Pack (Consumer Level)
Quantity per packing unit 8
package level GTIN 00027067913364
Height (Inch) 9.25
Width (Inch) 11.375
Length (Inch) 13.75
weight (Pounds Gross) 2.954
