WEHRLI WCF100478 2001-2004 LB7 DURAMAX S300 SINGLE TURBO INSTALL KIT
- SKU:
- WCF100478
- MPN:
- WCF100478
- Shipping:
- Calculated at Checkout
Description

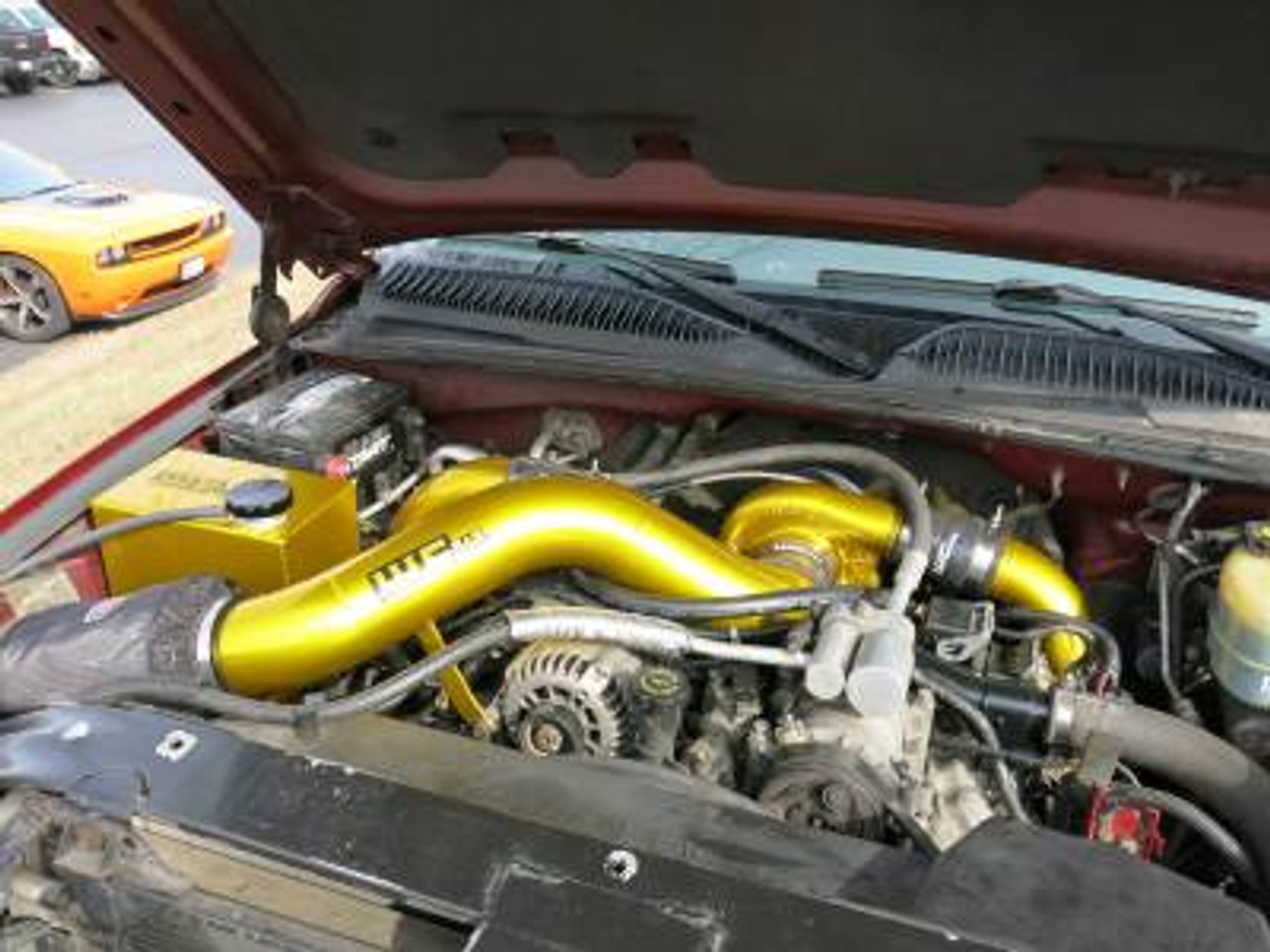

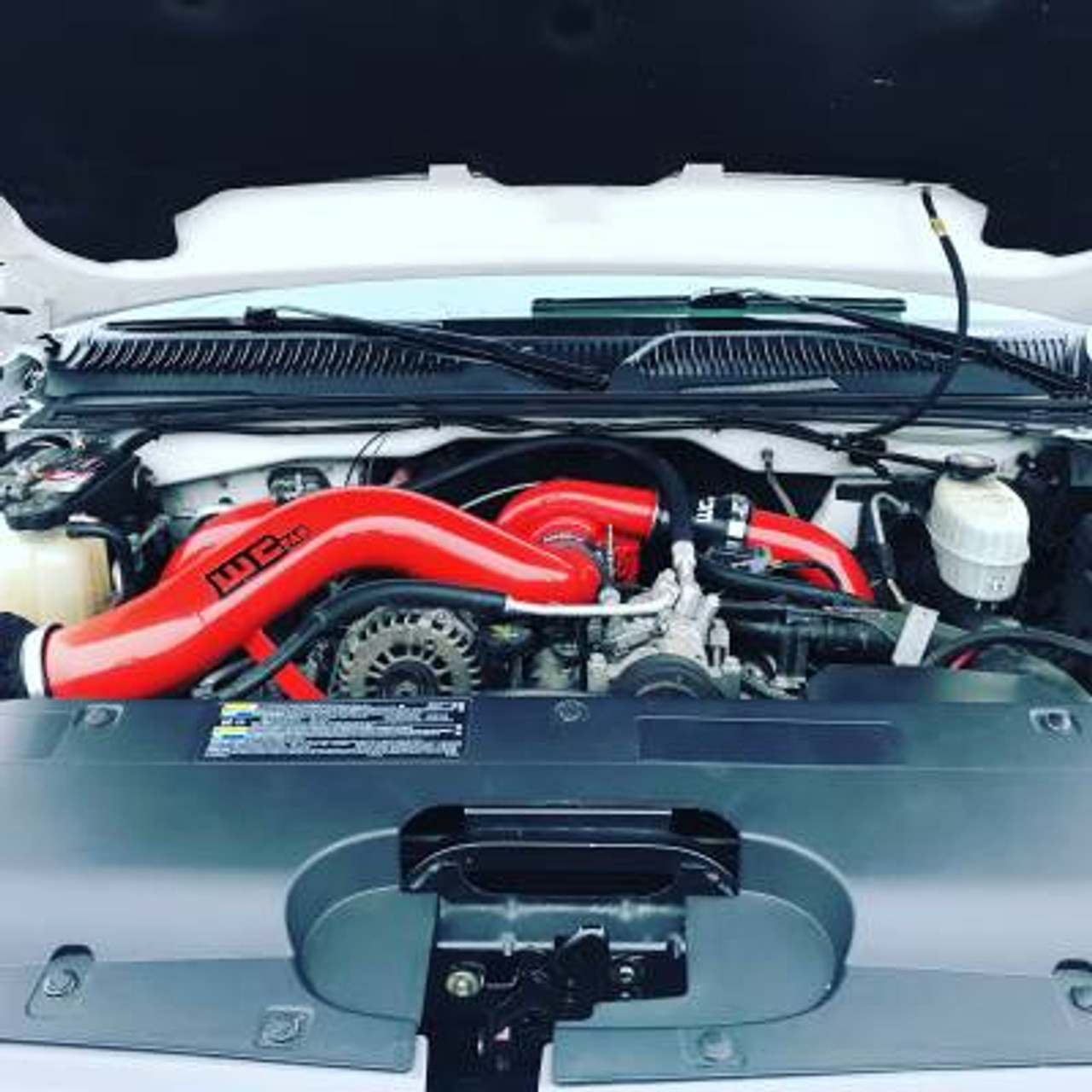

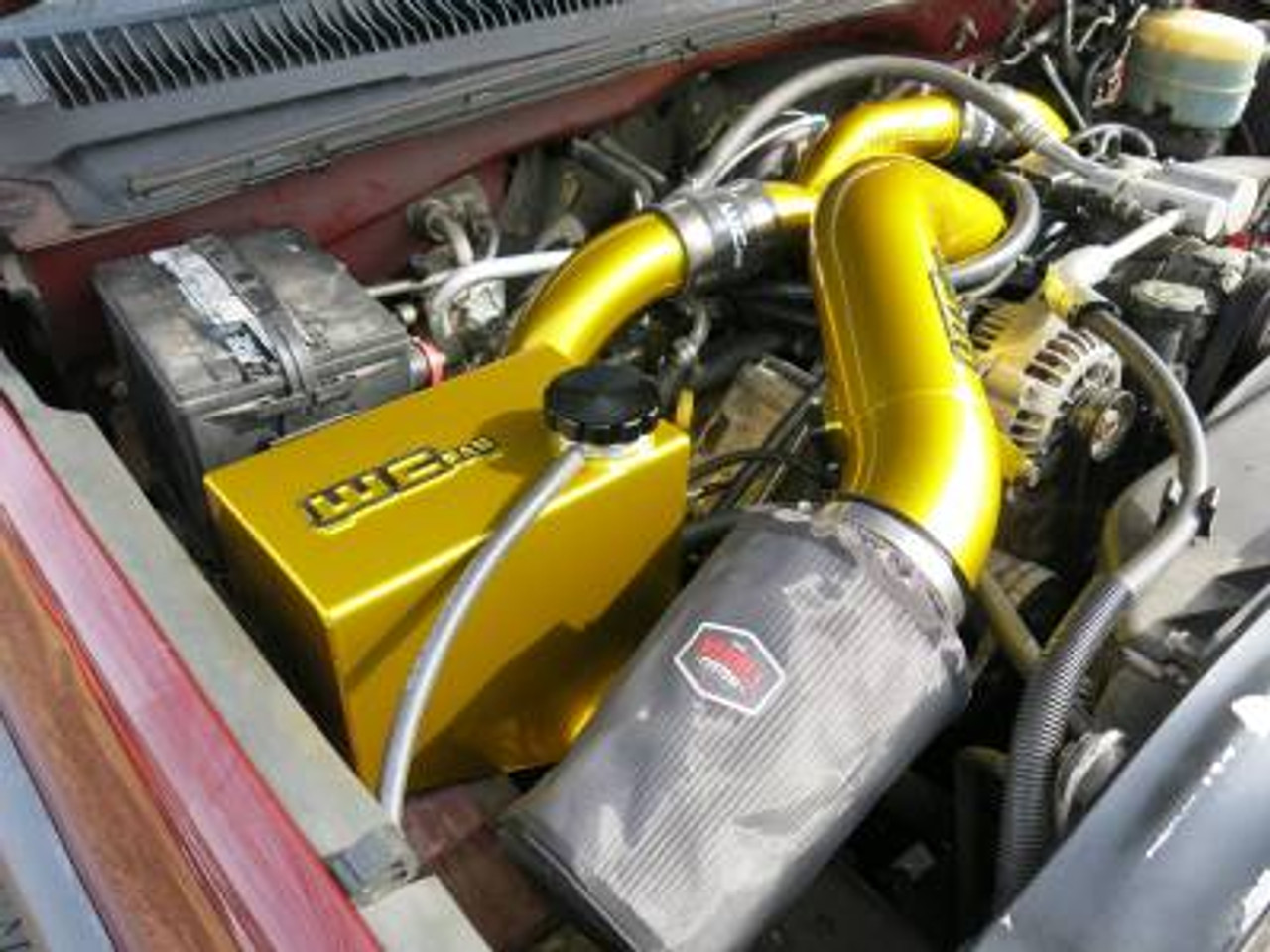

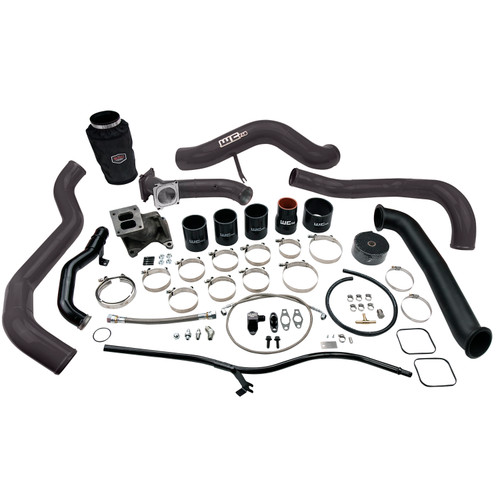

This kit will allow you to install an S300-based Turbo on your LB7 Duramax. Replacing all OEM plumbing and y-bridge with high flow 3" diameter piping. Oil Lines are high-quality stainless steel braided Parker Lines with the oil feed line routing from the main oil galley on the side of the engine block. We designed our down pipe to connect with your exhaust system V-Band and clamp, which simplifies installation and does not require you to cut your exhaust system.
If you are not purchasing the turbo from us, you must specify the brand you are using. Some turbos you may be required to ship to use for mock-up to build the kit.
Includes Driver Side Transmission Dipstick Tube, making installing the down pipe easier.
***NOTE: Our downpipe is an HX40 style flange connection at the turbo, as this style offers the best seal, alignment, and easiest install. If you are not purchasing the turbo from us, you will need to make sure your exhaust housing is machined to HX40 style outlet flange! Note the picture above for the HX40 flange vs the full Marmon standard style.
The OEM turbo coolant feed port on the upper radiator pipe from the thermostat housing will interfere with the larger WCFAB Turbo Intake in this Kit. You MUST use a WCFAB Billet forward-facing thermostat housing Kit WCF100405 or our Modified OEM Pipe WCF100797. Billet Coolant Port Block Off Plugs DO NOT allow enough room for clearance on LB7 Models.
POWDER COATING - CHECK OUT OUR VIDEO
Powder coating has quickly become one of the most popular alternatives to traditional paint coatings. This type of surface finishing uses a dry powder applied electrostatically as a coating. The part is then cured in an oven for a period of time at temperatures ranging from 380-425*F to form a solid, durable finish. Powder coating not only looks great, but it also lasts longer while providing protection from harmful corrosion. To further improve corrosion resistance for components exposed to the weather we can first apply a Zinc-Rich Base Coat primer before the final color, which offers nearly ten times the corrosion resistance of just a standard coat of powder.
Wehrli Custom Powder Coating is housed under the same roof as Wehrli Custom Fabrication. Including 4 state of the art spray booths for both powder and ceramic coating applications and 6 curing ovens. Exceptional quality control, preparation, and packaging is our standard operation and what we have become known for. With over 30 different colors in stock at our facility, you have many options to choose from. If you don't see one you like, Prismatic Powders has over 5000 colors to choose from! (Non-stocked colors requested it will incur an additional fee) Below is a list of what we have in stock!
STANDARD OPTION SINGLE COAT COLORS
UPGRADED TWO COAT COLORS (ADDITIONAL FEES APPLY)
