EDGE PRODUCTS

EDGE PRODUCTS 85400-200 | EVOLUTION CTS3 | 2001-2016 CHEVY/GMC 2500/3500 DURAMAX 6.6L

(No reviews yet) Write a Review
SKU:
EDG85400-200
MPN:
85400-200
Shipping:
Calculated at Checkout
  • EDGE PRODUCTS 85400-200 | EVOLUTION CTS3 | 2001-2016 CHEVY/GMC 2500/3500 DURAMAX 6.6L
  • EDGE PRODUCTS 85400-200 | EVOLUTION CTS3 | 2001-2016 CHEVY/GMC 2500/3500 DURAMAX 6.6L
  • EDGE PRODUCTS 85400-200 | EVOLUTION CTS3 | 2001-2016 CHEVY/GMC 2500/3500 DURAMAX 6.6L
  • EDGE PRODUCTS 85400-200 | EVOLUTION CTS3 | 2001-2016 CHEVY/GMC 2500/3500 DURAMAX 6.6L
  • EDGE PRODUCTS 85400-200 | EVOLUTION CTS3 | 2001-2016 CHEVY/GMC 2500/3500 DURAMAX 6.6L
  • EDGE PRODUCTS 85400-200 | EVOLUTION CTS3 | 2001-2016 CHEVY/GMC 2500/3500 DURAMAX 6.6L
  • EDGE PRODUCTS 85400-200 | EVOLUTION CTS3 | 2001-2016 CHEVY/GMC 2500/3500 DURAMAX 6.6L
$749.95

Description

Evolution CTS3™ Programmer (85400-200) by Edge®. Introducing the next generation Evolution CTS3: all-new, full-Color Touch Screen CTS3. The CTS3 will continue to include all of the great features, benefits, and extended coverage from the CTS2 product line, all while adding a sleek, new exterior and cutting-edge screen. The best look in the industry delivered via a revamped, slim case design and a 5” full-color capacitive edge-to-edge display with true swipe screen technology. Not only is the display sharper, but the higher resolution screen delivers a tremendous pixel ratio and top-notch graphics. New screen layouts, faster processing speeds, and WiFi update capability are just a few things that set the Evolution CTS3 apart from all other competitors.

Notes:
This is a CARB compliant part, legal for use on vehicles built to meet CARB standards and/or registered in California and other states which follow CARB standards (CARB EO: D-802-13).

Specifications:
Max Horse Power Gain: 135 HP
Max Torque Gain: 240 lbs. x ft.
Screen Control: Touch Control
Trouble Codes: Read and Clear
Screen Size: 5"

Features:
Most comprehensive, state-of-the-art, multi-gauge/tuner touch-screen display on the market
3rd Generation design is faster and more capable than ever
Power levels designed for daily driving, towing, performance and extreme
Get additional HP and ft-lb TQ
Settings for tuning shift points, shift firmness, TQ management, fuel pressure and more
Adjust Speed and Rev Limiters
Correct Speedometer
Simple installation – just plug into OBDII port. No wiring required
Monitor key vehicle parameters like trans temp, boost, RPM and dozens more
Full color, 5” capacitive touch screen with auto-dimming
Offers crystal clear data at your fingertips
Highly customizable gauges and backgrounds
Boots up directly to gauge screen upon key cycle
Swipe capability allows easy switching between screens as needed for towing, performance, economy, etc
Built-in performance meter measures 0-60, 1/4 mile times and more
Advanced integrated data logger with export capability
Ability to add vehicle licenses to tune multiple vehicles with one product
Clear and Read DTC codes
Wi-Fi updateable



Vehicle Specific Attributes:



Alerts And Records Yes
Check Clear Dtcs Yes
Color Screen Yes
Color Touch Screen Display Yes
Custom Background Mystyle Yes
Data Acquisition Advanced + PIDS
Economy Tune Yes
Eo Number D-802-13
In Cab Monitoring Yes
Internet Updateable Yes
Performance Tests Yes
Performance Tunes Yes
Power Level 1 30 HP & 60 lb-ft
Power Level 2 50 HP & 90 lb-ft
Power Level 3 70 HP & 150 lb-ft
Power Level 4 100 HP & 210 lb-ft
Screen Auto Dim Yes
Speed Limiter Yes
Speedometer Correction Yes
Tire Size 26^ - 38^
Tow Tune Yes





Specs:



Auto Dimming Screen Yes
Brand Edge
Color Touch Screen Display Yes
Custom Background MyStyle Yes
Emission Code 1
EO Number D-802-13
Product Type In-Cabin Tuner
Video Capable Yes
UPC 810009939900
Part Number 85400-200





Emissions:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.



The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle





PERFORMANCE TECHNOLOGY AT IT’S SLEEKEST

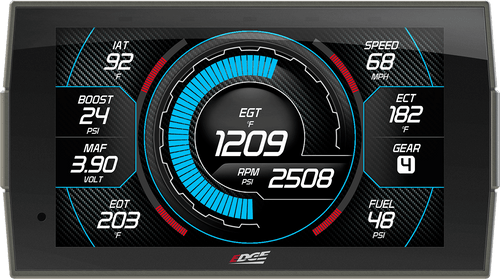

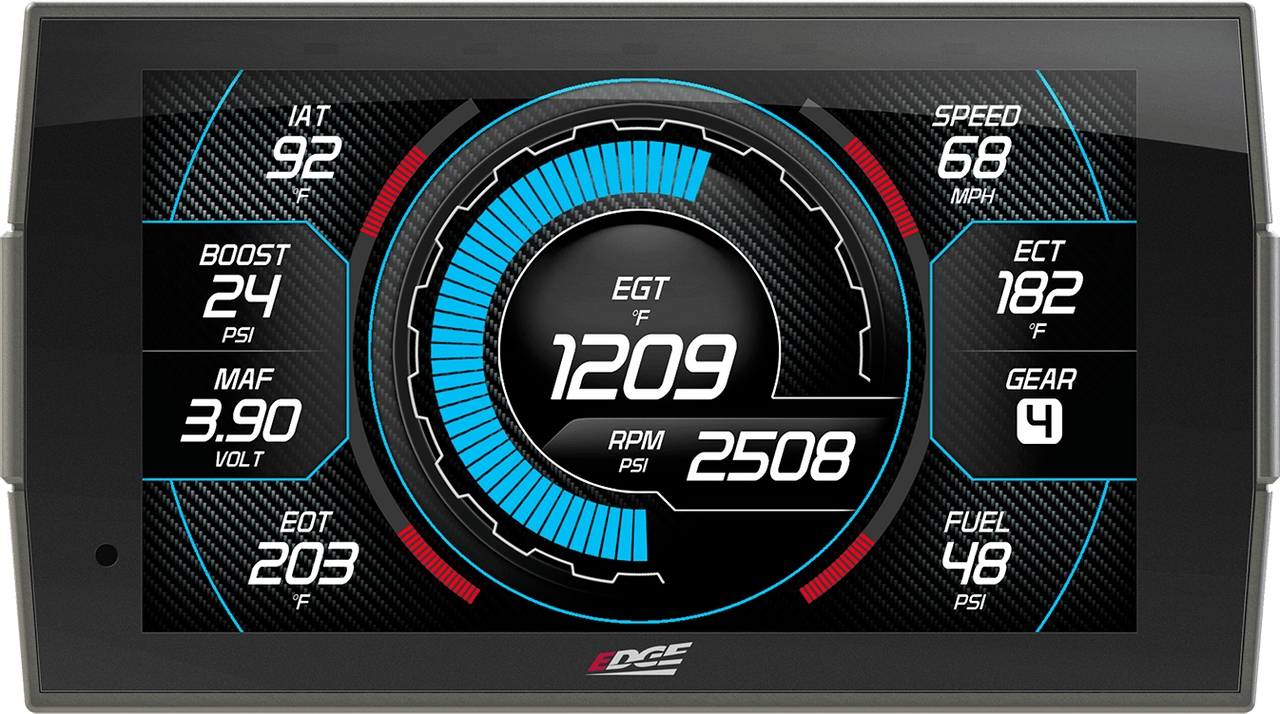

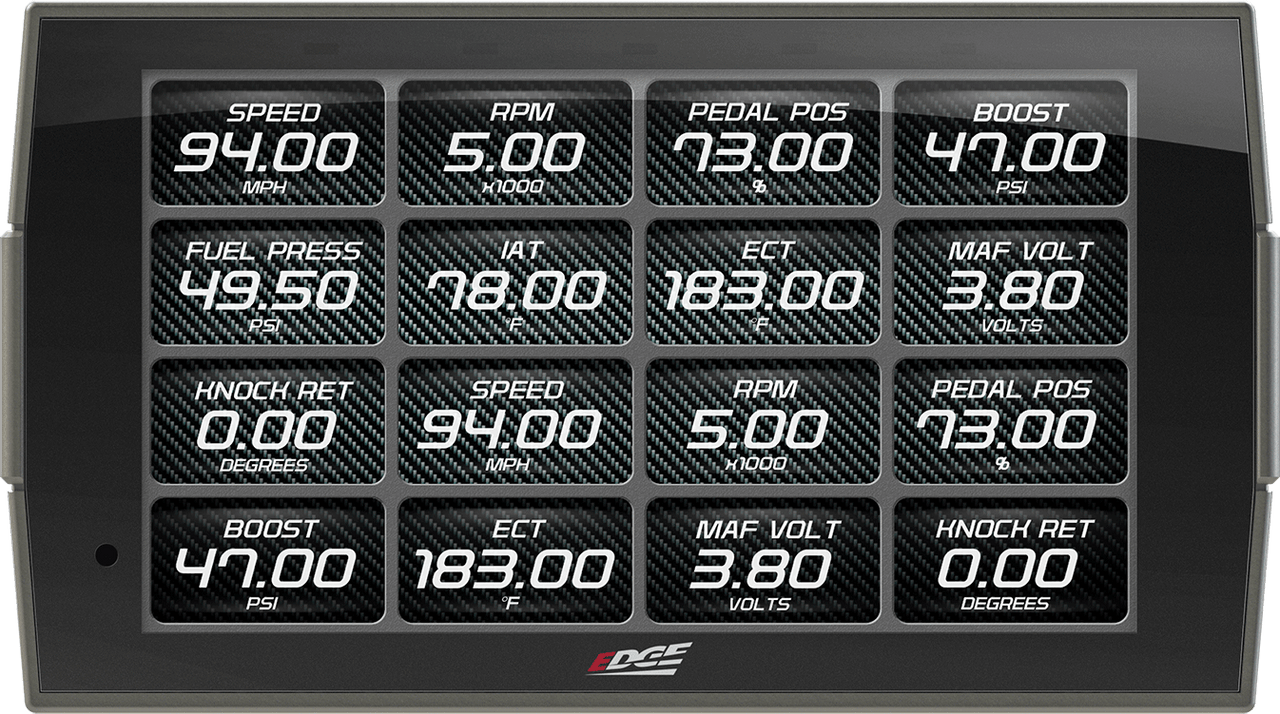

The Third Generation is faster, slimmer, smoother, more advanced, and wi-fi update compatible. In addition to the new slim case design, Edge also upgraded to a 5” full-color capacitive touch screen display, making Edge gauges the sleekest in the industry. Edge didn’t stop at making the display better; Edge added an all-new, high-speed, processor that provides easy swipe gestures and navigation throughout the product resulting in a user experience that is unmatched in the automotive aftermarket. Choose between over 20 multiple custom gauge screens to monitor vital vehicle parameters. The new Modern CTS3 screen is Edge’s all-new screen that allows you to monitor 10 parameters (PIDs) at once. Best of all, the multi-screen comes with a scrolling option and allows customers to swipe between multiple gauge screens at any given time.

YOUR GAUGE, YOUR LOOK, YOUR WAY

This is the perfect tool for those who want to monitor their vehicle’s performance and prefer not to program their vehicle, or for those who already have significant performance upgrades and want to safely monitor their vehicle’s performance. Not only can the Insight monitor vehicle performance, but it can also be intelligently configured to provide audible and visual alerts to help you protect your vehicle. Observe and understand your vehicle’s parameters using Edge’s state-of-the-art technology. Edge Insight CTS3 delivers unmatched monitoring capability for OBD II vehicles (1996 or newer). This Insight CTS3 digital gauge display works well with custom tuning products or as a stand-alone monitor for total insight on how your vehicle is performing.

YOUR LOOK

Not only can you custom background, but the third generation also comes fully equipped with a custom theme settings where you can custom mix any color you want. Apply your custom colors to gauge arcs, warnings, alerts, labels, or even color-tint your background! Changing between backgrounds and accessing the Color Mixer is quick and easy with one swipe from the pull-down control center
