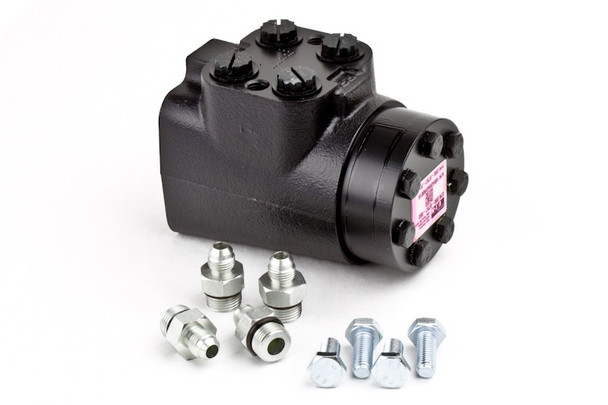

PSC FHV-CE160 EATON CHAR-LYNN STEERING CONTROL (ORBITAL) VALVE 159CC/9.73CI

The ultimate Steering Control Unit for mid-range flow applications, the Char-Lynn Series 10 Steering Control Unit facilitates hydraulic fluid flow like no other unit on the market. Its high 4,000 PSI pressure rating and widewalled sleeve thats 40 percetn thicker than the industry standard designs allows the Char-Lynn Series 10 Steering Control Unit to better accommodate smaller cylinders.

All of the Eaton Char-Lynn Steering Control Valves offered by PSC are load reaction type. A load reaction valve allows axle forces to return the steering wheel to its original position when the operator releases the wheel after completing a turn.

This return to center function is engineered to work in cross connected and balanced systems.

Features:

• 159CC / 9.73CI Displacement
• 4.00-8.00 GAL/MIN Flow Rate Capability
• Open Center, Load Reaction Type Valve
• 12 Tooth Internal Involute Spline Interface
• Max System Operating Temperature, 93 C/200 F
• 6AN Fittings Included (HWK-SV1)
• Optional 8AN Fittings Available (HWK-SV2)

TECH:

To calculate the amount of required turns at the steering wheel to move the steering axle from full lock-to-lock, divide cylinder volume by the Steering Control (Orbital) Valve displacement.

Elevate your hydraulic steering experience with the PSC FHV-CE160 Eaton Char-Lynn Steering Control (Orbital) Valve. This premium steering control unit is meticulously engineered for mid-range flow applications, ensuring maximum efficiency and superior hydraulic fluid control. With a robust 4,000 PSI pressure rating and innovative design features, the Char-Lynn Series 10 stands out as a leader in the industry.

Designed to accommodate smaller cylinders, this steering control unit boasts a wide-walled sleeve that is 40 percent thicker than conventional designs, enhancing durability and performance. The load reaction functionality enables a seamless return-to-center feature, allowing the steering wheel to effortlessly realign after maneuvering, which is critical for smooth operation in both cross-connected and balanced hydraulic systems.

• 159CC / 9.73CI Displacement provides optimal control and precision.
• Impressive flow rate capability of 4.00-8.00 GAL/MIN to suit varied applications.
• Open Center, Load Reaction Type Valve for enhanced responsiveness.
• 12 Tooth Internal Involute Spline Interface for secure connections.
• Maximum system operating temperature of 93 C/200 F for versatile application.
• 6AN fittings included (HWK-SV1) for easy installation and adaptability.
• Optional 8AN fittings available (HWK-SV2) for increased customization.

Equip your vehicle with the Eaton Char-Lynn Steering Control Valve today and experience the remarkable benefits of advanced hydraulic steering technology that ensures durability, efficiency, and unrivaled control.
