EDGE PRODUCTS
EDGE PRODUCTS 85301 | DIESEL EVOLUTION CS2 - CA EDITION | 1994-2019 CHEVY/GMC/FORD/DODGE/RAM DIESEL TRUCKS
(No reviews yet)
Write a Review
- SKU:
- EDG85301
- MPN:
- 85301
- Shipping:
- Calculated at Checkout
Description

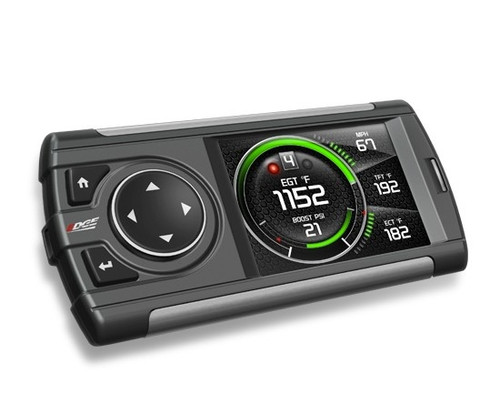

Edge Evolution CS is a crowd favorite so why fix something if it isn't broken? Believe us when we tell you, we didn't, we just made it that much better! The Evolution CS2 is the sleekest in-cab monitor and programmer in the market. If you're looking for the best bang for your buck then look no further than the Evolution CS2! *NOTE: Device not compatible with 2011 Ram 6.7L manual transmissions *NOTE: HEMI coverage for 1500 model only This part number carries an executive Number. Configure vehicle for EO Numbers. 50 State Legal - D-541-18and D-802-5
Specs:
| Alerts and Records | Yes |
|---|---|
| Auto Dimming Screen | Yes |
| Brand | Edge |
| CARB EO# | D-541-18 |
| Check Clear DTCs | Yes |
| Custom Background MyStyle | Yes |
| Data Logging | Yes |
| Emission Code | 1 |
| Fuel Type | Diesel |
| Height | 2 |
| In Cab Monitoring | Yes |
| Length | 9.5 |
| Performance Tests | Yes |
| Performance Tunes | Yes |
| Product Type | In-Cabin Tuner |
| Touch Screen | Yes |
| Weight | 2 |
| Width | 4 |
| UPC | 810115011774 |
| Part Number | 85301 |
Vehicle Specific Attributes:
2003-2010 Dodge Ram 2500 359/5.9L L6
| Alerts And Records | Yes |
|---|---|
| Axle Gear Ratio | Yes |
| Check Clear Dtcs | Yes |
| Color Screen | Yes |
| Custom Background Mystyle | Yes |
| Data Acquisition | Advanced + PIDS |
| Economy Tune | Yes |
| Eo Number | D-541-18 |
| In Cab Monitoring | Yes |
| Injection Timing | Edge Optimized, Stock, Advanced |
| Internet Updateable | Yes |
| Manual Regen | Yes |
| Performance Tests | Yes |
| Performance Tunes | Yes |
| Power Level 1 | 25 HP & 75 lb-ft |
| Power Level 2 | 45 HP & 145 lb-ft |
| Power Level 3 | 70 HP & 190 lb-ft |
| Power Level 4 | 95 HP & 240 lb-ft |
| Screen Auto Dim | Yes |
| Speed Limiter | 102-250 |
| Speedometer Correction | Yes |
| Tire Size | 22.5^ - 42^ |
| Torque Management Adjustment | Edge Optimized, Stock, Advanced |
| Tow Tune | Yes |
| Vehicle Data Parameters | Accel Pedal Position |
| Barometric Pressure | |
| Battery Voltage | |
| Calculated Fuel Rate 02+ | |
| Desired FRP | |
| Desired Idle RPM | |
| Engine Coolant Temp | |
| Engine Load | |
| Engine Oil Pressure 03+ | |
| Engine RPM | |
| Fuel Level | |
| Fuel Rail Pressure | |
| Fuel Temperature | |
| Gear with TCL | |
| Intake Air Temp | |
| Main Inj Fuel Rate | |
| Main Injection Timing | |
| Manifold Abs Pressure | |
| Mass Air Flow | |
| Oil Life Remaining | |
| Pilot Inj Command | |
| Pilot Inj Rate | |
| Pilot Inj Timing | |
| Time 0-60 | |
| Time 1/4 mile | |
| Trans Temp(04 and up) | |
| Turbo Boost | |
| Vehicle Speed |
2003-2010 Dodge Ram 3500 359/5.9L L6
| Alerts And Records | Yes |
|---|---|
| Check Clear Dtcs | Yes |
| Color Screen | Yes |
| Custom Background Mystyle | Yes |
| Data Acquisition | Advanced + PIDS |
| Economy Tune | Yes |
| Eo Number | D-541-18 |
| In Cab Monitoring | Yes |
| Injection Timing | Edge Optimized, Stock, Mild, Extreme, and Eco |
| Internet Updateable | Yes |
| Performance Tests | Yes |
| Performance Tunes | Yes |
| Power Level 1 | 25 HP & 110 lb-ft |
| Power Level 2 | 70 HP & 165 lb-ft |
| Power Level 3 | 95 HP & 220 lb-ft |
| Power Level 4 | 120 HP & 270 lb-ft |
| Rail Pressure Setting | Edge Optimized, Stock, Mild, Extreme, and Eco |
| Rev Limiter | Stock or raised to 3993 |
| Stock or raised to 3994 | |
| Screen Auto Dim | Yes |
| Speed Limiter | 106-250 |
| Edge Products optimized | |
| Tire Size | 22.5^ - 42^ |
| Top Speed Limiter | 106-258 |
| 106-259 | |
| Torque Management Adjustment | Edge Optimized, Stock, Mild, Advanced, and Extreme |
| Tow Tune | Yes |
| TQ Management | Edge Optimized, Stock, Mild, Extreme, and Eco |
| Transmission Tuning | Edge Products optimized |
| Stock or raised to 4000 | |
| Vehicle Data Parameters | Accel Pedal Position |
| Barometric Pressure | |
| Battery Voltage | |
| Calculated Fuel Rate 02+ | |
| Desired FRP | |
| Desired Idle RPM | |
| Engine Coolant Temp | |
| Engine Load | |
| Engine Oil Pressure 03+ | |
| Engine RPM | |
| Fuel Level | |
| Fuel Rail Pressure | |
| Fuel Temperature | |
| Gear with TCL | |
| Intake Air Temp | |
| Main Inj Fuel Rate | |
| Main Injection Timing | |
| Manifold Abs Pressure | |
| Mass Air Flow | |
| Oil Life Remaining | |
| Pilot Inj Command | |
| Pilot Inj Rate | |
| Pilot Inj Timing | |
| Time 0-60 | |
| Time 1/4 mile | |
| Trans Temp(04 and up) | |
| Turbo Boost | |
| Vehicle Speed |
Emissions:
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
Tech Resources:
documents.edgeproducts.com/cs2_phoenix_evolution_user_manual.pdf
