EDGE PRODUCTS 31401 | JUICE W/ATTITUDE CS2 | 2001-2002 DODGE RAM 2500/3500 5.9L CUMMINS

2001-2002 DODGE (5.9L) JUICE W/ATTITUDE CS2

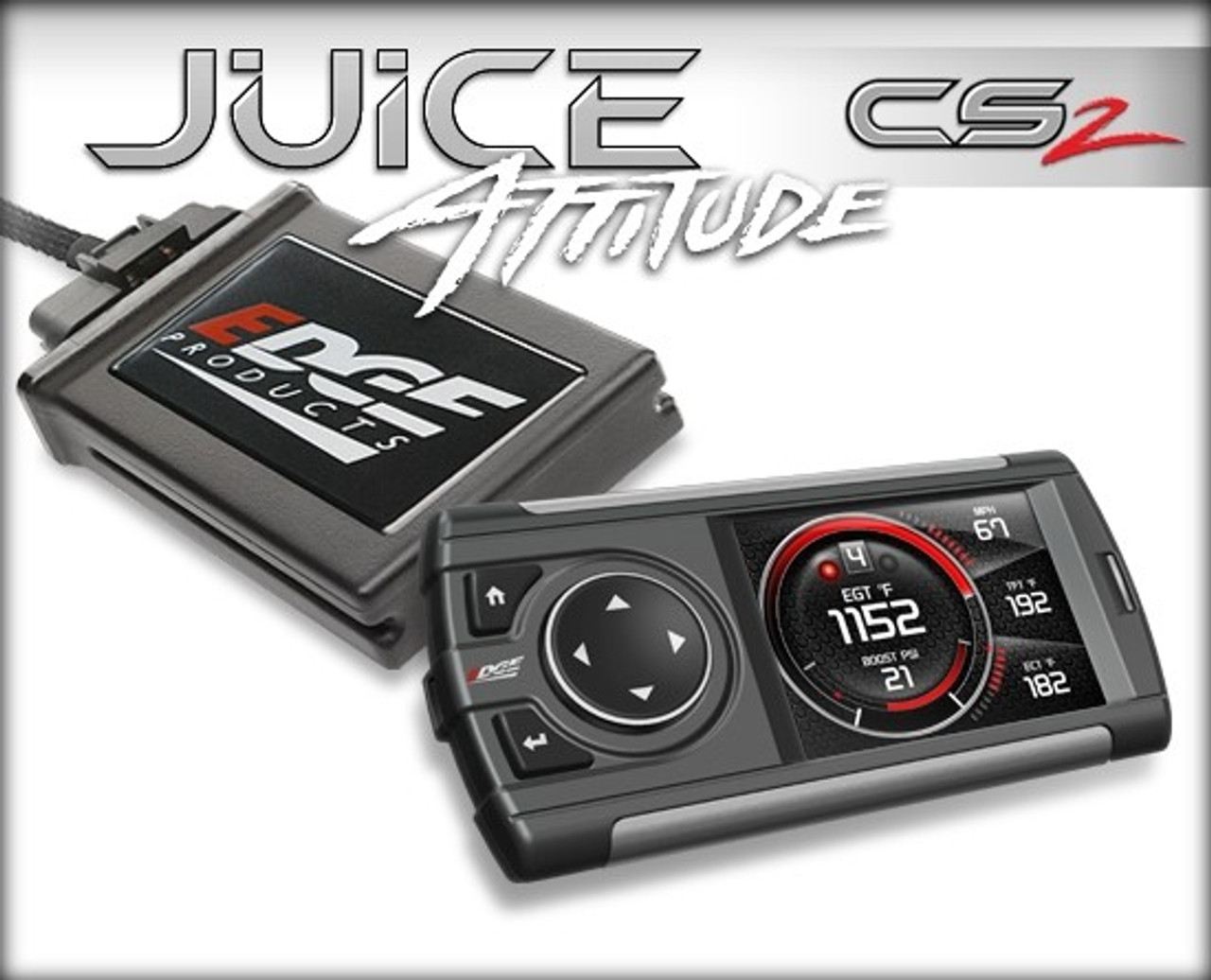

Juice with Attitude CS2™ Programmer (31401) by Edge®. Power Level 1: 40 hp & 150 lb-ft. Power Level 2: 60 hp & 200 lb-ft. Power Level 3: 80 hp & 250 lb-ft. Power Level 4: 100 hp & 300 lb-ft. Power Level 5: 120 hp & 350 lb-ft. With a streamlined appearance and innovative features, combined with the inline Juice module, the Attitude CS2 delivers shift-on-the-fly power and customized monitoring options through this upgraded button control monitor.

Notes:
This is a CARB compliant part, legal for use on vehicles built to meet CARB standards and/or registered in California and other states which follow CARB standards (CARB EO: D-541-18).

Specifications:
Power Level 1: 40 hp & 150 lb-ft
Power Level 2: 60 hp & 200 lb-ft
Power Level 3: 80 hp & 250 lb-ft
Power Level 4: 100 hp & 300 lb-ft
Power Level 5: 120 hp & 350 lb-ft
Screen Control: Button Control
Trouble Codes: Read and Clear
Screen Size: 2.4"

Displays Vehicle Parameters (PIDs): Backdown, Voltage, EGT (exhaust gas temp), Engine Coolant Temp, Engine Fuel Pressure (pressure of the fuel lift pump), Fuel Temperature (measured in the VP44 injector pump), Intake Air Temp, Engine Load (only on later models), Module Temperature (internal temperature of the module), RPM, Speed MPH, Throttle, Transmission Temp, Turbo Boost Pressure, Oil Pressure

Features:
Color Screen
Custom Background MyStyle
Screen Auto Dim
Alerts and Recoders
Performance Tests
Display True Speed on Monitor
Data Acquisition
Internet Updateable
Tow Tune
Economy Tune
In Cab Monitoring
Performance Tunes
Check Clear DTCs

Includes:
Juice Module
Main Harness
Hook and Loop Fastener Strips
Zip Ties
EGT Sensor Probe
Juice Attitude Bridge (JAB)
Quick Install Guide

Vehicle Specific Attributes:

2001-2002 Dodge Ram 2500 359/5.9L L6

2001-2002 Dodge Ram 3500 359/5.9L L6

Specs:

Emissions:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle

Tech Resources:

cs2_dodge_juice_installation_manual.pdf (edgeproducts.com)

documents.edgeproducts.com/31001_a.pdf

techlibrary_d-541-18.pdf (edgeproducts.com)

If you’ve modified your diesel truck’s fuel injectors and delivery system, upgraded the transmission, installed an aftermarket turbo, or performed other similar enhancements, the Edge Juice With Attitude CS2 and CTS2 are designed to build on that increased strength to give you extreme levels of power that will help you win at the racetrack. The Juice with Attitude differs from most vehicle programmers in that it does not reprogram your vehicle’s ECU. Instead, a separate module mounts under the hood where it connects directly to factory sensors to bypass your vehicle’s ECU. This allows power increases above and beyond factory capabilities and prevents conflicted commands. While Juice with Attitude settings for Fuel Economy, Towing, and Moderate Increased power may be used with stock factory vehicles, Edge Products strictly recommends against using settings 4 and 5 for racetrack performance unless fuel systems and drivetrain components have been upgraded.

Headquartered in Odgen, Utah, Edge Products® was founded in 1999 by engineers that specialized in performance electronics for diesel trucks. Earning a reputation for reliability and proven performance among users, Edge Products greatly expanded their customer base worldwide and has been named three times to Inc. Magazine’s list of fastest growing companies. Edge currently offers a variety of OBD II compatible modules, programmers, and monitors for gasoline- and diesel-specific applications. Today, Edge is a subsidiary of the MSD Performance Company, and the resulting affiliation with MSD Ignition, Superchips, and Racepak parts has led to unparalleled engineering expertise, advanced product features, and quality construction techniques. Edge currently has over 100 employees and occupies a 40,000 square foot facility.
